MIL-PRF-19500/548H

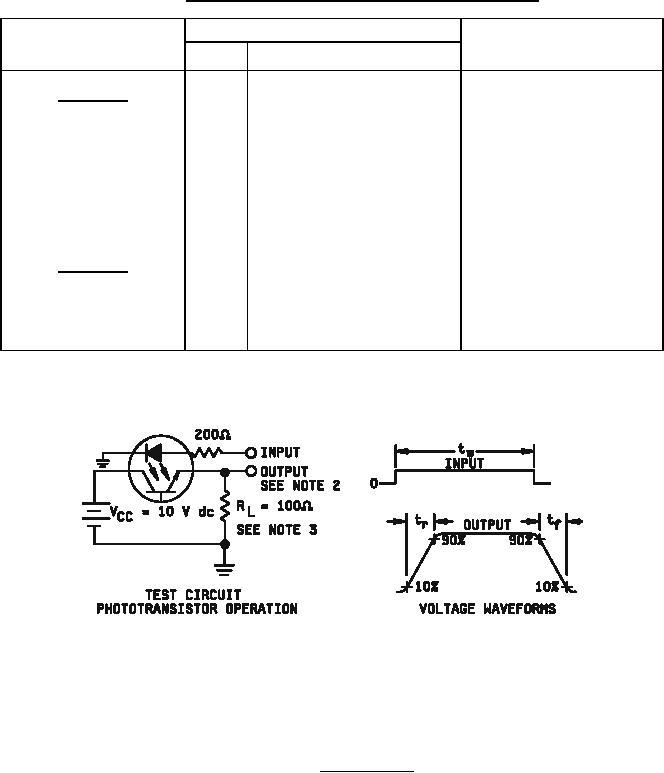

TABLE II. Group E inspections (all quality levels) for qualification only.

MIL-STD-750

Quality conformance

Inspections

inspection sample size.

Method

Conditions

Subgroup 1

45 devices, c = 0

Temperature cycling

1051

Test condition B, 500 cycles

Hermetic seal

1071

Fine leak

Gross leak

Electrical measurements

Table I, subgroup II

Subgroup 2

45 devices, c = 0

For all devices with organic

High temperature

1039

reverse bias

material.

Electrical measurements

Table I, subgroup II

NOTES:

1. The input waveform is supplied by a generator with the following characteristics: ZOUT = 50 Ω, tr ≤ 15 ns,

duty cycle = 1 percent; tw = 100 �s.

2. The output waveform is monitored on an oscilloscope with the following characteristics: tr ≤ 12 ns,

Rin = 1 MΩ, Cin = 20 pF.

3. Adjust amplitude of input for: IF = 5mA dc.

FIGURE 3. Switching times.
