MILDTL28803/3D

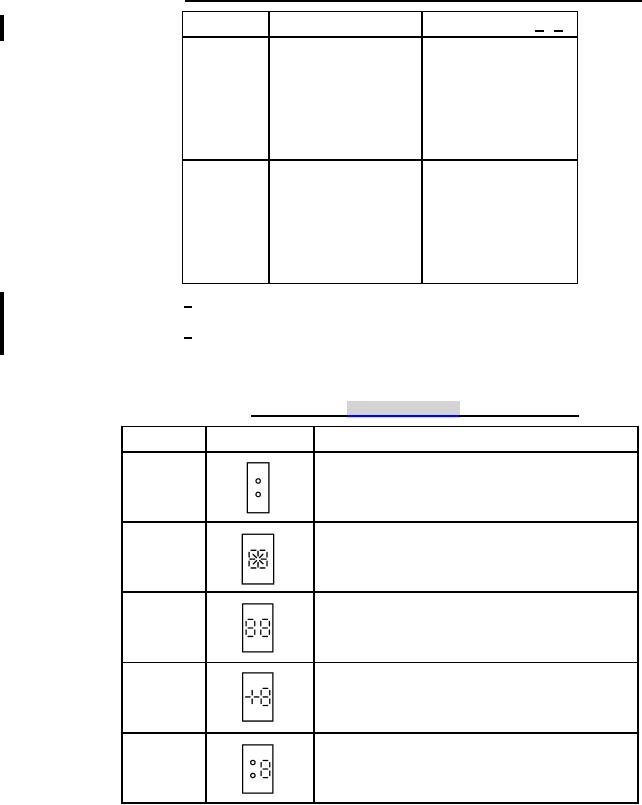

TABLE VI. Code letters for type of display (dot matrix or bar matrix) and panel thickness.
Code
Type of display
Panel thickness 1/ 2/
1
Dot matrix
.250 (6.35)
2
Dot matrix
.190 (4.83)
3
Dot matrix
.125 (3.18)
4
Dot matrix
.063 (1.60)
5
Dot matrix
.093 (2.36)
6
Bar matrix
.250 (6.35)
7
Bar matrix
.190 (4.83)
8
Bar matrix
.125 (3.18)
9
Bar matrix
.063 (1.60)
0
Bar matrix
.093 (2.36)
1/
Dimensions are in inches. Millimeter equivalents are given for
general information only.
2/
Unless otherwise specified, tolerances are ±.010 inch (0.25 mm) for
three place decimals.
TABLE VII. Code letters for MILDTL28803/4 module assemblies.
Code letter
Display
Type of module
A
Colon, degree, or decimal
B
16 segment alpha-numeric
C
Two 7 segment numeric
D
4 segment sign and 7 segment numeric
E
Colon and 7 segment numeric
8
