MILDTL28803/3D
NOTES:
1.
Dimensions are in inches. Millimeter equivalents are given for general information only.
2.
Unless otherwise specified, tolerances are ±.02 inch (0.51 mm) for two place decimals.
3.
Design configuration optional within envelope as shown.
The values for dimensions A, C, and M are listed in table I.
4.

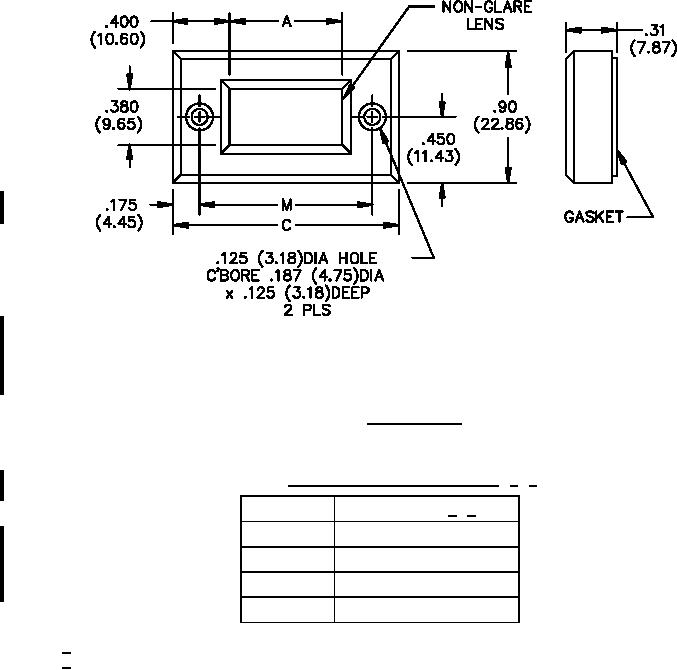

FIGURE 2. Bezel assembly.
TABLE III. Mounting rail assembly dimensions. 1/ 2/
Dimension
Calculation 1/ 2/
T
L + .05 (1.27)
R
L + .30 (7.62)
M
L + .55 (13.97)
D
L + .80 (20.32)
1/
Dimensions are in inches. Millimeter equivalents are given for general information only.
2/
Unless otherwise specified, tolerances are ±.02 inch (0.51 mm) for two place decimals and
±.010 inch (0.25 mm) for three place decimals.
3
