MIL-DTL-28803-2 Display, Optoelectronic, Segmented Readout, Backlighted, Style I \(Incandescent Lamps\) Rfi Shielded, Moisture Sealed, High Impact Shock, Type Ro2

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9


. . .
MIL­DTL­28803/2B
NOTES:
1.  Dimensions are in inches. Millimeter equivalents are given for general information only.
2.  Unless otherwise specified, tolerances are ±.02 inch (0.51 mm) for two place decimals and
±.010 inch (0.25 mm) for three place decimals.
3.  Design configuration optional within envelope as shown.
4.  The values for dimensions A, B, and C are listed in table I.
FIGURE 1. Type R02 display ­ Continued.
TABLE I. Display assembly dimensions. 1/ 2/ 3/
Number of units
Weight
A
B
C
per assembly
maximum
3
2.00 (50.8)
2.50 (63.5)
2.87 (72.9)
4.5 (127.6)
4
2.50 (63.5)
3.00 (76.2)
3.27 (83.1)
5.0 (141.7)
5
3.00 (76.2)
3.50 (88.9)
3.87 (98.3)
5.5 (155.9)
6
3.50 (88.9)
4.00 (101.6)
4.37 (110.0)
6.0 (170.0)
7
4.00 (101.6)
4.50 (114.3)
4.87 (123.7)
6.5 (184.3)
8
4.50 (114.3)
5.00 (127.0)
5.37 (136.4)
7.0 (198.4)
9
5.00 (127.0)
5.50 (139.7)
5.87 (149.1)
7.5 (212.6)
10
5.50 (139.7)
6.00 (152.4)
6.87 (174.5)
8.0 (226.8)
1/
Dimensions are in inches. Millimeter equivalents are given for general information only.
2/
Weights are in ounces. Gram equivalents are given for general information only.
3/
Unless otherwise specified, tolerances are ±.02 inch (0.51 mm) for two place decimals and
±.010 inch (0.25 mm) for three place decimals.
NOTES:
1.
Dimensions are in inches. Millimeter equivalents are given for general information only.
2.
Unless otherwise specified, tolerances are ±.010 inch (0.25 mm).
3.
Design configuration optional within envelope as shown.
4.
Terminal part number (package of 25 terminals): M22885/80­50 of MIL­PRF­22885/80.
5.
Application information:
Crimp tool:
M22520/1­01 of MIL­C­22520/1.
Positioner:
M22520/1­02 of MIL­C­22520/1.
Insertion tool:
Eaton Aerospace (CAGE 96182) 800­3191
Extraction tool: Eat on Aerospace 800­P7
Locator tool:
Eat on Aerospace 800-3191­L20
6.
Terminals can be installed in terminal blocks without the use of special tools, but tool part number 800­P2
(CAGE 96182) is required for removal.

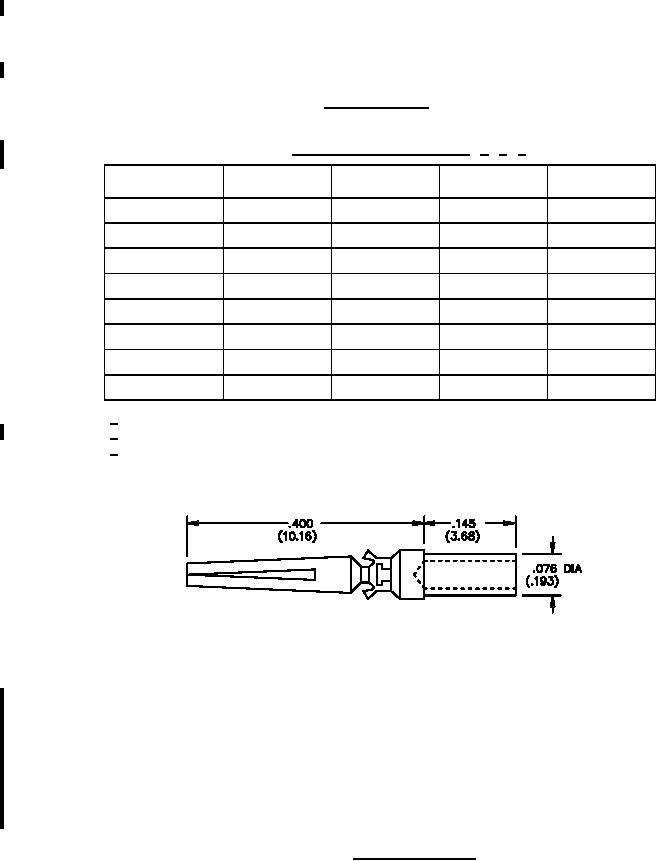

FIGURE 2. Terminal, crimp type.
