MIL-DTL-28803-1 Display, Optoelectronic, Segmented Readout, Backlighted, Style Ii \(Light Emitting Diodes\), Rfi Shielded, Moisture Sealed, High Impact Shock, Type, Ro1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17


. . .
MIL­DTL­28803/1E
NOTES:
1.
Dimensions are in inches. Millimeter equivalents are given for general information only.
2.
Unless otherwise specified, tolerances are ±.010 inch (0.25 mm) for three place decimals.
3.
Design configuration optional within envelope as shown.
Terminal part number (package of 25 terminals): M22885/80­50 of MIL­PRF­22885/80.
4.
5.
Application information:
M22520/1­01 of MIL­C­22520/1.
Crimp tool:
Positioner:
M22520/1­02 of MIL­C­22520/1.
Insertion tool:
Eat on Aer ospace (CAGE 96182) 800­3191
Extraction tool: Eat on Aer ospace 800­P7
Astro Tool Corp. (CAGE 58164) ATMS 2062
Locator tool:
Eaton Aerospace 800­3191­L20

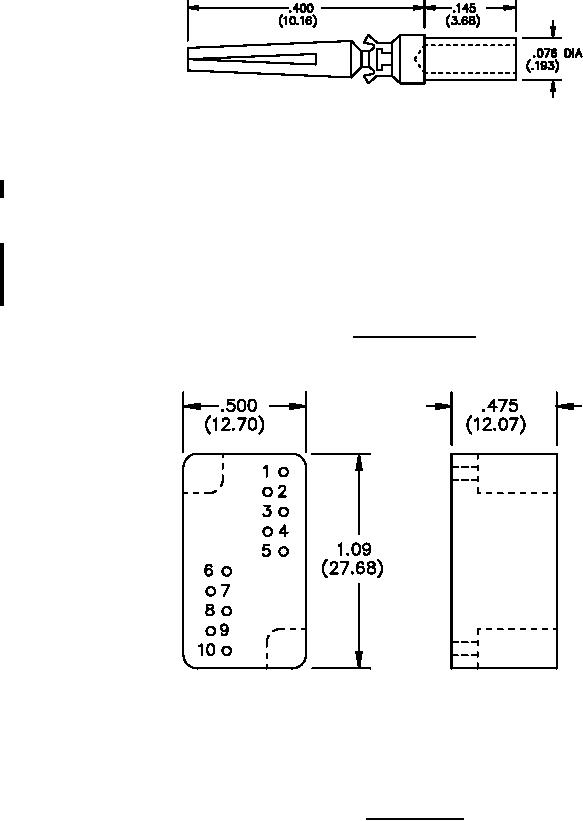

FIGURE 3. Terminal, crimp type.
NOTES:
1.
Dimensions are in inches. Millimeter equivalents are given for general information only.
2.
Unless otherwise specified, tolerances are ±.010 inch (0.25 mm) for three place decimals.
3.
Design configuration optional within envelope as shown.
4.
Connector block part number: M28803/1­ZZ.
FIGURE 4. Connector block.
