MIL-DTL-28803-4 Display, Optoelectronic, Segmented Readout, Backlighted, Style I \(Incandescent\), Dot Pattern And Bar Pattern, Type Ro4 \(Replacement Parts For Type Ro3 Display Assembly\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12


.
INCH­POUND
MIL­DTL­28803/4D
7 September 2013
SUPERSEDING
MIL­D­28803/4C
3 August 1990
DETAIL SPECIFICATION SHEET
DISPLAY, OPTOELECTRONIC, SEGMENTED READOUT, BACKLIGHTED,
STYLE I (INCANDESCENT), DOT PATTERN AND BAR PATTERN, TYPE R04
(REPLACEMENT PARTS FOR TYPE R03 DISPLAY ASSEMBLY)
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL­DTL­28803.

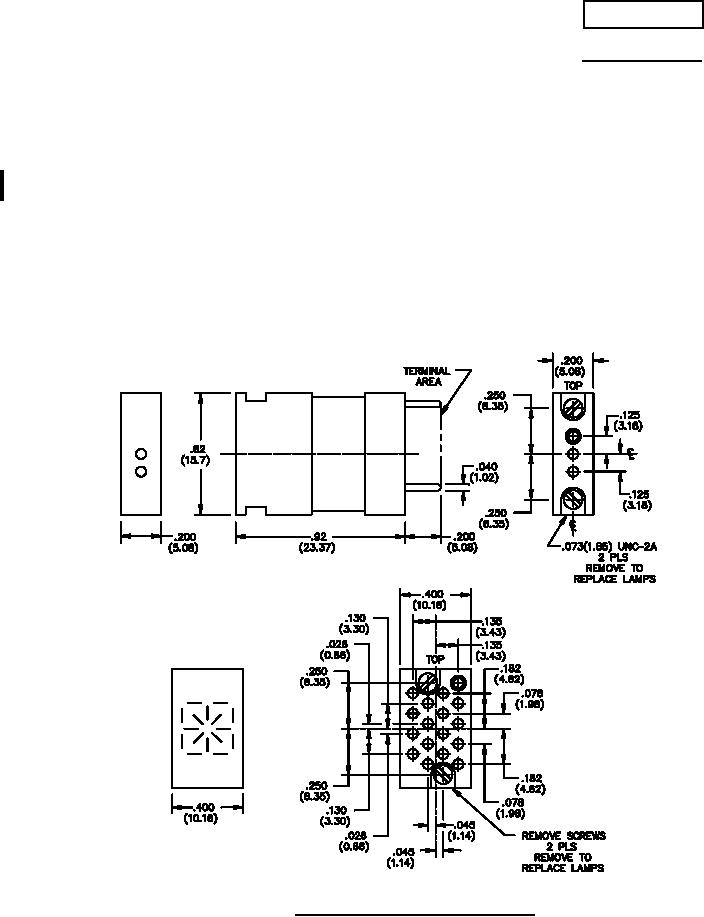

FIGURE 1. Type R04 display module sub-assembly.
AMSC N/A
FSC 5980
