MIL-DTL-28803-2 Display, Optoelectronic, Segmented Readout, Backlighted, Style I \(Incandescent Lamps\) Rfi Shielded, Moisture Sealed, High Impact Shock, Type Ro2

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9


.
NCH­POUND
MIL­DTL­28803/2B
5 September 2013
SUPERSEDING
MIL­D­28803/2A
3 August 1990
DETAIL SPECIFICATION SHEET
DISPLAY, OPTOELECTRONIC, SEGMENTED READOUT, BACKLIGHTED, STYLE I
(INCANDESCENT LAMPS) RFI SHIELDED, MOISTURE SEALED, HIGH IMPACT SHOCK, TYPE R02
This specification sheet is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this
specification sheet and MIL­DTL­28803.
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.12
3.0
.18
4.6
.375
9.52
.750
19.05
.125
3.18
.218
5.54
.43
10.9
.850
21.59
.135
3.43
.25
6.4
.56
14.2
1.12
28.5
1.80
45.7

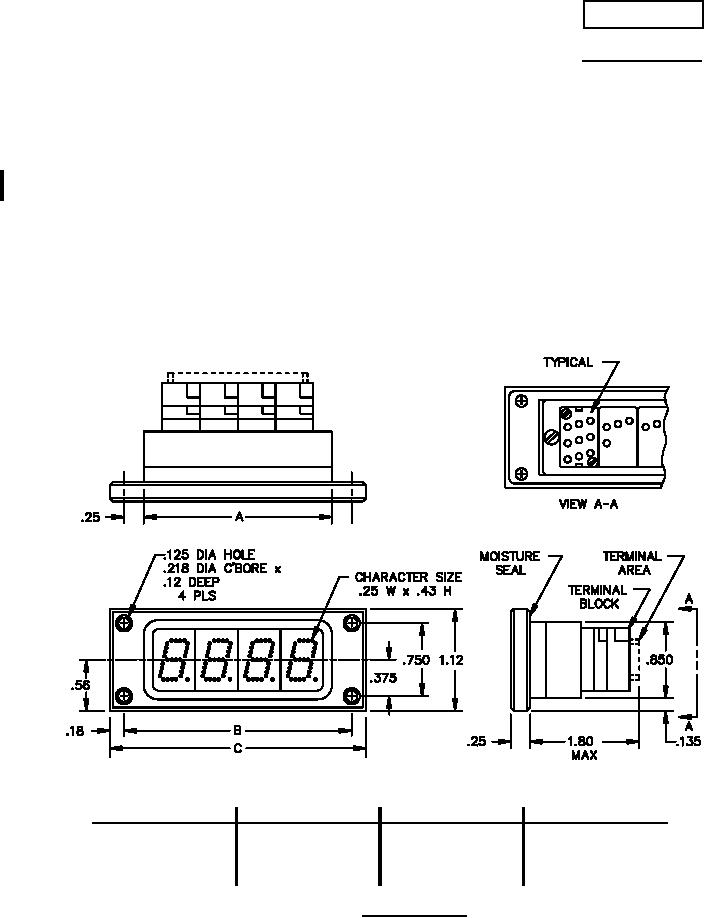

FIGURE 1. Type R02 display.
