MILDTL28803/4D
NOTES:
1. Dimensions are in inches. Millimeter equivalents are given for general information only.
2. Unless otherwise specified, tolerances are ±.02 inch (0.51 mm) for two place decimals and
±.010 inch (0.25 mm) for three place decimals.
3. Design configuration optional within envelope as shown.

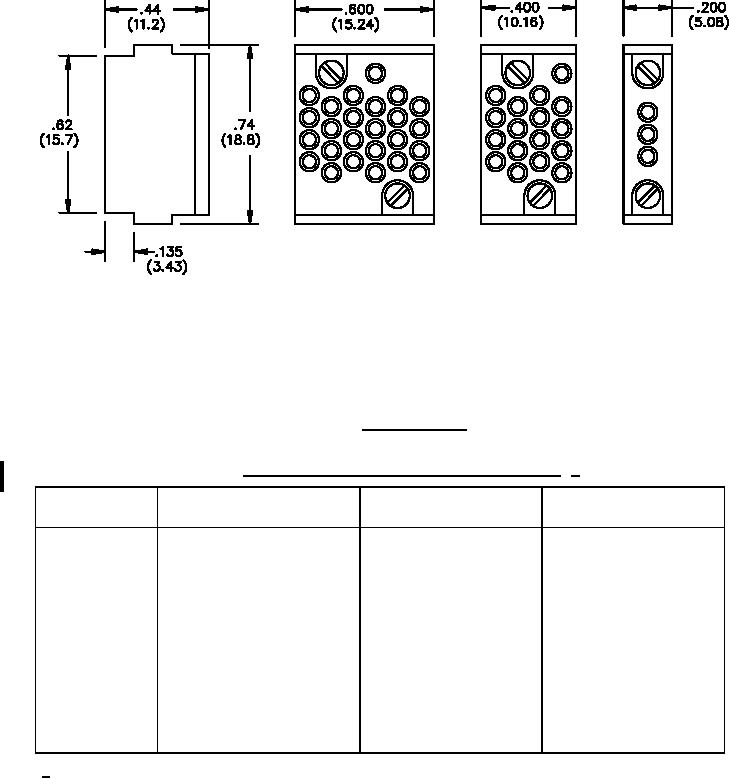

FIGURE 7. Connector blocks.
TABLE X. Weight of modules or component parts by code letter. 1/
Module code
Maximum weight in grams
Module or part
Maximum weight in grams
letter
code letter
A or A1
6.0
M or M1
8.0
B or B1
8.0
N
2.0
C or C1
8.0
P
6.0
D or D1
8.0
Q
8.0
E or E1
8.0
R
2.0
F or F1
8.0
S
0.2
G or G1
11.0
T or T1
8.0
H or H1
11.0
U or U1
8.0
J or J1
11.0
V or V1
8.0
K or K1
11.0
W or W1
8.0
L or L1
11.0
1/
Code letters are listed in table XI.
