MIL-DTL-28803-4 Display, Optoelectronic, Segmented Readout, Backlighted, Style I \(Incandescent\), Dot Pattern And Bar Pattern, Type Ro4 \(Replacement Parts For Type Ro3 Display Assembly\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12


.
MIL­DTL­28803/4D
NOTES:
1.  Dimensions are in inches. Millimeter equivalents are given for general information only.
2.  Unless otherwise specified, tolerances are ±.010 inch (0.25 mm) for three place decimals.
3.  Design configuration optional within envelope as shown.

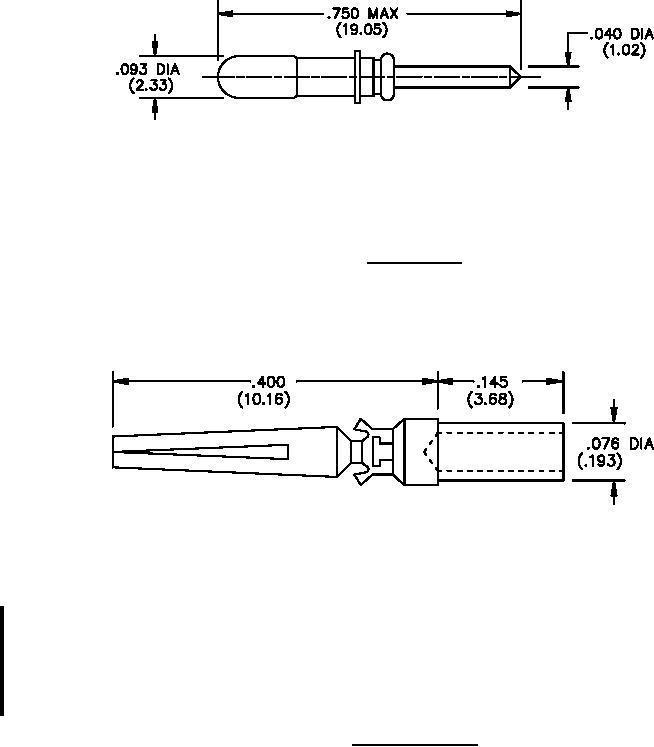

FIGURE 5. Lamp assembly.
NOTES:
1.
Dimensions are in inches. Millimeter equivalents are given for general information only.
2.
Unless otherwise specified, tolerances are ±.010 inch (0.25 mm) for three place decimals.
3.
Design configuration optional within envelope as shown.
4.
Terminal part number (package of 25 terminals): M22885/80­50 of MIL­PRF­22885/80.
5.
Application information:
Crimp tool:
M22520/1­01 of MIL­C­22520/1.
M22520/1­02 of MIL­C­22520/1.
Positioner:
Insertion tool:
Eaton Aerospace (CAGE 96182) 800­3191
Extraction tool: Eaton Aerospace 800­P7
Locator tool:
Eaton Aerospace 800­3191­L20
FIGURE 6. Terminal, crimp style.
